In the world of industrial manufacturing, hose braiding machines play an essential role in the production of high-performance, durable, and flexible hoses. Whether you’re working in the automotive, aerospace, or construction industries, choosing the right hose braiding machine is crucial for meeting the specific demands of your production line. Hose braiding machines are used to wrap fibers, wires, or other materials around hoses, giving them added strength, flexibility, and durability to withstand harsh conditions. This comprehensive guide will help you understand what hose braiding machines are, the various types available, factors to consider when choosing one, and how to maximize your investment.
What Is a Hose Braiding Machine?

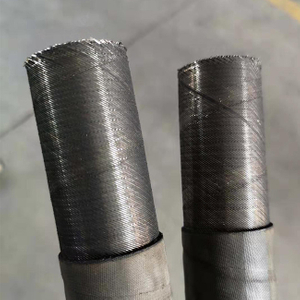

A hose braiding machine is a specialized piece of equipment used to reinforce hoses by weaving or braiding fibers or metal wires around them. These machines are designed to braid different materials, such as polyester, aramid fibers, and steel wires, around the hose, which helps improve its mechanical strength, pressure resistance, flexibility, and overall durability.

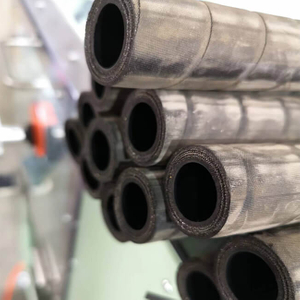

Hoses that undergo the braiding process are typically used in high-pressure environments, such as hydraulic systems, automotive brake lines, and other industrial applications. This process not only enhances the performance of hoses but also extends their lifespan by providing them with greater wear and tear resistance, especially in demanding environments.
Types of Hose Braiding Machines
There are several types of hose braiding machines, each designed for different types of hose braiding tasks. Understanding the differences between these machines will help you choose the one best suited for your specific requirements. Here are the most common types:
1. Horizontal Hose Braiding Machine
Horizontal braiding machines are typically used for larger hoses and cables. The carriers, which hold the braiding material, are arranged in a horizontal configuration. This type of machine is ideal for producing braided hoses that require heavy reinforcement, such as hoses for hydraulic systems and industrial-grade equipment.
· Advantages: Suitable for large hoses and high-volume production
· Drawbacks: Requires more floor space and can be more costly to maintain
2. Vertical Hose Braiding Machine
Vertical braiding machines, also known as Maypole braiders, feature a central column with carriers moving around it in a circular motion. These machines are ideal for smaller, more precise hose braiding applications, such as those found in the medical or electronics industries.
· Advantages: Compact design, ideal for small-diameter hoses, high precision
· Drawbacks: Limited in terms of hose size and production speed
3. Rotary Hose Braiding Machine
Rotary braiding machines feature rotating disks where carriers are mounted. These machines are capable of producing high-quality, durable braided hoses in various patterns and materials. The rotary design allows for faster production speeds compared to other machines, making it ideal for high-volume industrial production.
· Advantages: Faster production speed, versatile for multiple materials
· Drawbacks: Higher initial investment and maintenance costs
4. Automatic Hose Braiding Machine
Automatic braiding machines are fully automated and designed for high-efficiency production lines. These machines minimize human intervention and are equipped with advanced features such as automatic feeding and cutting, making them ideal for large-scale manufacturing.
· Advantages: High efficiency, reduced labor costs, consistent quality
· Drawbacks: Expensive to purchase and requires advanced technical knowledge for maintenance
Factors to Consider When Choosing a Hose Braiding Machine
When selecting a hose braiding machine, it’s important to take into account various factors to ensure you choose the right machine for your specific application. Here are some key considerations:
1. Hose Material and Application
The type of material you plan to use with the hose braiding machine will influence the type of machine you need. For example, braiding machines that work with stainless steel wire will differ from those designed for nylon or polyester fibers. Additionally, the application of the hose—whether it's for high-pressure hydraulic systems or flexible pneumatic tubes—will determine the strength, durability, and pattern of the braid required.
2. Production Volume
The scale of your production is a critical factor. If you are running a large-scale operation with high-volume output, an automatic hose braiding machine may be the best option. However, for smaller production runs or custom jobs, a manual or semi-automatic machine could suffice. Choosing a machine that matches your production needs will ensure efficiency and cost-effectiveness.
3. Speed and Efficiency
Production speed is a crucial aspect, especially in industries where output volume and turnaround time are key to profitability. Automatic and rotary hose braiding machines are known for their faster production speeds. If you need to produce braided hoses quickly, these machines are a better fit than slower, manual options.
4. Machine Durability and Maintenance
The durability of the machine itself is another important factor to consider. Machines with higher durability will require less maintenance, saving you time and money in the long run. Consider whether the machine is designed for heavy-duty industrial use, and check the availability of spare parts and technical support to ensure that any downtime is minimized.
5. Cost and Return on Investment
The initial investment in a hose braiding machine can vary widely, depending on the type, features, and automation level. While automatic machines may come with a higher price tag, they often provide a faster return on investment (ROI) through increased productivity and reduced labor costs. Be sure to assess your budget and long-term production goals to make a financially sound decision.
Applications of Hose Braiding Machines
Hose braiding machines are used in a wide range of industries due to their ability to produce hoses with enhanced strength, flexibility, and pressure resistance. Some of the most common applications include:
1. Automotive Industry
In the automotive industry, braided hoses are essential for hydraulic brake lines, fuel lines, and power steering hoses. These hoses must be able to withstand high pressures and mechanical stress, which is why braiding is a crucial reinforcement technique.
2. Aerospace Industry
In the aerospace industry, lightweight yet strong hoses are required for fuel and hydraulic systems. Braiding machines help produce hoses that meet the stringent safety and performance standards required in aerospace applications.
3. Construction and Heavy Equipment
Hose braiding machines are used to manufacture hoses for construction equipment, such as hydraulic excavators and cranes. These hoses need to be extremely durable to handle the demanding conditions in construction environments.
4. Medical Industry
In the medical field, braided hoses are used for various applications, such as surgical tools and catheters. The precision and reliability offered by hose braiding machines make them an essential component of medical device manufacturing.
The Benefits of Using a Hose Braiding Machine
The use of a hose braiding machine offers several benefits to manufacturers, including:
1. Good Mechanical Strength
Braided hoses reinforced with fibers or wires are far stronger than non-braided alternatives, making them suitable for high-pressure environments.
2. Water Resistance
The braided structure helps improve the hose’s resistance to water and other fluids, making it ideal for applications in harsh or wet environments.
3. Flexibility
Braided hoses offer better flexibility without compromising strength, allowing them to be used in applications requiring bending and movement.
4. Customization
Modern hose braiding machines can be customized to produce hoses with different braid patterns, materials, and specifications to meet the needs of various industries.
Conclusion
Choosing the right hose braiding machine is essential for maximizing efficiency, productivity, and the overall quality of your hose products. By considering factors such as hose material, production volume, and machine capabilities, you can select the best machine for your operation. With the rapid advancement in hose braiding technology, investing in a suitable machine will enable your business to produce superior braided hoses that meet the demands of industries like automotive, aerospace, construction, and more.
