In the world of automotive manufacturing, efficiency, reliability, and safety are paramount. Hydraulic systems are integral to the performance of many automotive systems, including power steering, brakes, and transmissions. These systems rely on hose wire braiding machines to produce the reinforced hoses that keep them functioning under high pressure and extreme conditions. The technology behind these machines has a significant impact on the automotive industry by ensuring that the hoses used in critical systems are both durable and capable of withstanding the high demands of automotive applications.
This article explores the role of hose wire braiding machines in automotive manufacturing, how they improve the production of hydraulic hoses, and their broader impact on automotive safety and performance. We will also discuss the latest trends in hose wire braiding technology, provide product comparisons, and answer common questions related to their use in automotive applications.
What is a Hose Wire Braiding Machine?

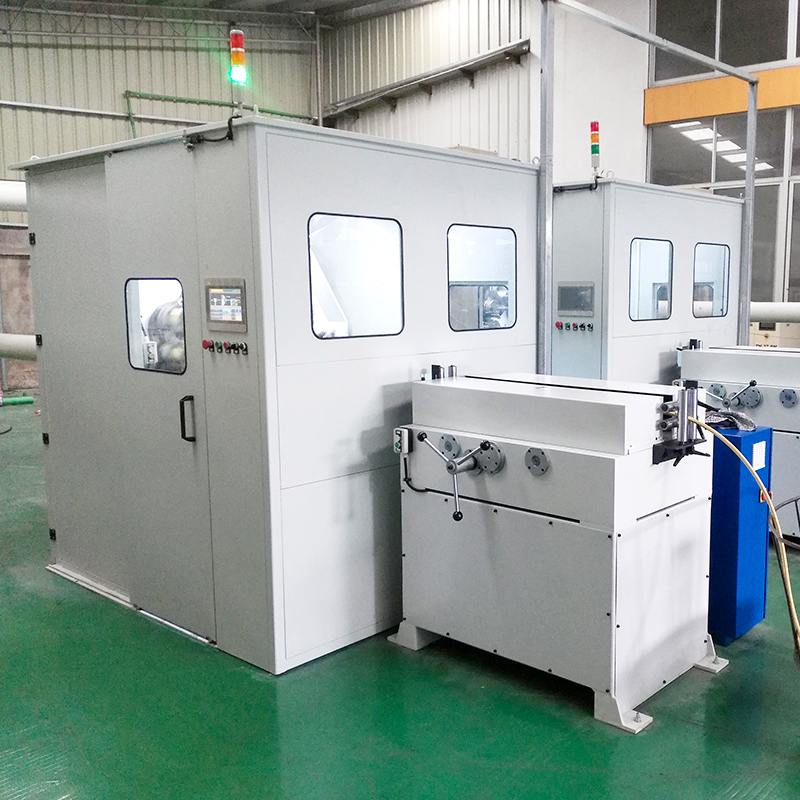

A hose wire braiding machine is an advanced industrial machine used to braid steel wire around hoses. The primary function of the braiding process is to provide additional reinforcement to the hose, ensuring it can withstand the high pressures typically found in hydraulic and automotive systems. The machine works by interlacing wire strands in a crisscross pattern, which creates a strong, flexible, and durable reinforcement layer around the hose.
These machines are commonly used in the production of hydraulic hoses, fuel hoses, brake lines, and other types of automotive fluid transfer systems. By adding this layer of reinforcement, the hose can endure higher internal pressures, resist wear, and withstand harsh operating conditions, such as extreme temperatures and vibrations.
Types of Hose Wire Braiding Machines
There are several different types of hose wire braiding machines used in automotive manufacturing. Some of the most common types include:
Single Braiding Machines
These machines are designed to braid a single layer of wire around the hose. While they are simpler in design, they are ideal for applications that do not require extreme reinforcement but still benefit from added durability.
Double Braiding Machines
Double braiding machines are used to apply two layers of wire around the hose. This creates a higher level of reinforcement and is typically used for hoses that need to withstand higher pressures and more rigorous operating conditions, such as brake lines and fuel hoses.
Multilayer Braiding Machines
These machines apply multiple layers of wire braiding to the hose, offering the highest level of reinforcement. They are used for the most demanding applications, such as hydraulic systems in heavy machinery and automotive systems under extreme stress.
Spiral Braiding Machines
Spiral braiding machines use a rotating mechanism to apply the wire in a spiral pattern, providing flexible reinforcement that is highly resistant to twisting and bending. This type of braiding is commonly used in automotive hoses that need to endure extreme movement and flexing.
Each type of hose wire braiding machine has its own advantages depending on the requirements of the application, such as the level of pressure, flexibility, and durability needed for the hoses.
Impact of Hose Wire Braiding Machines on Automotive Manufacturing
The automotive industry demands high standards of quality, safety, and reliability, particularly in systems that rely on hydraulic hoses and fluid transfer. Hose wire braiding machines play a critical role in meeting these demands by enhancing the strength and performance of automotive hoses. Let's break down how these machines impact automotive manufacturing.
1. Improved Durability and Pressure Resistance
Automotive systems such as power steering, hydraulic brakes, and air conditioning all rely on hoses that can withstand high pressures. Hose wire braiding machines significantly improve the pressure resistance of these hoses by reinforcing them with layers of braided steel wire. This added reinforcement ensures that the hoses do not burst or collapse under high pressure, preventing system failures and improving the safety of the vehicle.
For example, brake lines in cars are subject to high pressure due to the hydraulic fluid used to operate the braking system. Without the strength provided by wire braiding, the hose could easily rupture, leading to brake failure and posing a significant safety risk. By using hose wire braiding machines, manufacturers can produce hoses that are both flexible and pressure-resistant, meeting the stringent requirements of automotive applications.
2. Enhanced Flexibility for Easier Installation
While hose wire braiding machines provide additional reinforcement to hoses, they also maintain the necessary flexibility for ease of installation and movement. Automotive hoses, especially those used in engines and undercarriages, need to bend and flex in response to engine vibrations and mechanical movement. Braided hoses are more flexible than non-braided hoses, allowing them to be installed in confined spaces and subject to constant movement without failure.
This flexibility is particularly important in hydraulic systems where hoses need to be routed through various parts of the vehicle, such as the engine compartment, suspension systems, and transmission. Hose wire braiding machines enable manufacturers to produce hoses that can handle this dynamic movement while maintaining their structural integrity over time.
3. Resistance to Environmental Factors
Automotive hoses are exposed to a range of harsh environmental factors, including high temperatures, UV radiation, chemicals, and moisture. Hose wire braiding machines help enhance the resistance of hoses to these factors by providing a protective barrier against abrasions, corrosion, and wear. The braided steel wires create a shield that prevents the hose from being damaged by external elements, thereby extending its lifespan.
For example, fuel hoses are exposed to fuel vapors and high temperatures, which can degrade the material over time. By using hose wire braiding machines, manufacturers can create hoses that resist cracking, swelling, and corrosion, ensuring that the hoses perform optimally even in harsh conditions.
4. Increased Safety and Compliance with Industry Standards
In the automotive industry, safety is the number one priority, and the integrity of hydraulic hoses is critical to preventing accidents. Hose wire braiding machines help manufacturers meet international safety standards by ensuring that the hoses produced are capable of withstanding high pressures and environmental stressors. Automotive manufacturers must adhere to strict industry standards, such as those set by SAE (Society of Automotive Engineers) and ISO (International Organization for Standardization), which specify the performance requirements for hoses used in hydraulic systems.
By using high-quality hose wire braiding machines, manufacturers can ensure that their hoses meet these standards and provide the level of safety required for the vehicles they are used in.
Data Analysis and Product Comparison: Hose Wire Braiding Machines in Automotive Applications
To understand the impact of hose wire braiding machines on automotive manufacturing, it's essential to compare the performance of braided hoses with non-braided hoses. Below is a comparison of the key attributes:
| Feature | Braided Hose | Non-Braided Hose |
| Pressure Resistance | High | Low |
| Flexibility | High | Low |
| Durability | High | Medium |
| Resistance to Environmental Factors | High | Low |
| Cost | Higher | Lower |
| Safety Compliance | High | Low |
As the comparison shows, hose wire braiding machines produce hoses with superior performance in terms of pressure resistance, flexibility, durability, and environmental resistance. While braided hoses tend to cost more than non-braided hoses, their enhanced performance and ability to meet safety standards make them essential in critical automotive applications.
Recent Trends in Hose Wire Braiding Technology
In recent years, there have been several advancements in hose wire braiding technology. Some of the notable trends include:
Automation and Increased Production Speed
Modern hose wire braiding machines are becoming more automated, allowing for faster production times and higher output. Automation also reduces the risk of human error, improving the consistency and quality of the hoses produced.
Use of Advanced Materials
Manufacturers are now incorporating advanced materials, such as high-strength stainless steel and corrosion-resistant alloys, into the braiding process. This enhances the performance of the hoses in extreme conditions, such as high temperatures and exposure to chemicals.
Customization Options
Manufacturers are offering more customizable options for hose wire braiding machines, allowing automotive companies to produce hoses with varying braiding patterns, wire thicknesses, and coatings to meet specific performance requirements.
Integration with Smart Technologies
Some hose wire braiding machines are now equipped with sensors and digital monitoring systems that track production quality in real time. This allows manufacturers to identify potential issues early in the production process and make adjustments to improve quality.
Frequently Asked Questions
Q1: What is the main advantage of using a hose wire braiding machine in automotive manufacturing?
A: The main advantage is the ability to produce hydraulic hoses that are highly resistant to pressure, environmental factors, and wear, ensuring long-term reliability and safety in automotive systems.
Q2: How does a hose wire braiding machine improve the flexibility of hoses?
A: The braiding process enhances the flexibility of hoses by creating a strong yet pliable reinforcement layer, allowing them to bend and move without compromising their strength.
Q3: Are there any recent advancements in hose wire braiding technology?
A: Yes, recent advancements include automation for faster production, the use of advanced materials for greater durability, and digital monitoring systems to ensure consistent quality.
Conclusion
Hose wire braiding machines are crucial in automotive manufacturing, ensuring hydraulic hoses are strong, flexible, and durable under pressure. These machines improve the safety and performance of critical automotive systems, from brakes to steering. As technology advances, automation and smarter materials are making hose production faster and more efficient.
At Nanjing Hydraulic Sun Technology Co., Ltd., we integrate these innovations into our machines to help automotive manufacturers produce high-quality hoses that meet the industry's demanding standards. By investing in advanced hose wire braiding machines, manufacturers can enhance vehicle safety, reliability, and overall performance.
