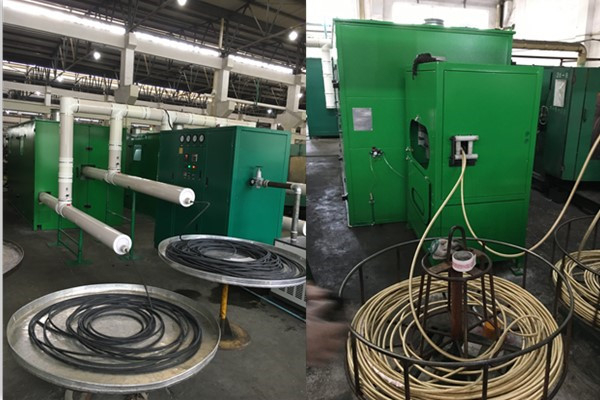

The One Machine Dual Use double-layer high-speed hose steel wire braiding machine developed by our company, it can be used as single deck hose steel wire braiding machine. Functionally developed equipment with high productivity and high degree of automation.
Through frequency conversion speed regulation to adjust the braiding pitch and traction pressure matching adjustment, the braiding production can be realized from the diameter range of Ф5 to Ф65 and the braiding of long mandrel hoses with any pitch from 20 to 175mm. Meets the production needs of general industrial rubber and plastic hose reinforcement layer braiding.
PLC, touch screen and frequency control system are adopted, Pitch change can be controlled, set and stored by itself；
Large capacity of spool (8KG), reduced the number of wire changes per unit time, improved the time and efficiency of continuous braiding operations;
Advanced spindle structure design, tension stability：
a. Mechanical clutch mode is adopted for spool setting out, make sure the pay off frequency is stable；
b. The spool tension is controlled and regulated by an even number of compression springs, Ensure the stability of tension. The pay out assembly can be interchanged with any pair；
c. There is no interference relationship between tension control and spindle body, Interchangeable pay off assembly.
Color touch screen, it can set various process parameters and display the working state, display production quantity and reset；
Set the detection of line break and shutdown, lack of film detection, automatic lubrication system, ventilation circulation function, sound insulation function, safety protection function；
Double layer braiding machine Adopt servo + frequency conversion Or servo + servo mode control, can be used at the same time, it can also be woven individually；
Comprehensive fault alarm and warning system, door in place detection switch, motor overload detection switch, oil level detection switch. Ensure the safety and normal operation of personnel and equipment.
High production efficiency, braiding adopts high-speed disc rotation, and high-quality imported bearings and electrical components are used for materials, ensuring stable equipment quality and longer service life.
High degree of automation, the electrical part adopts advanced imported PLC controller and fault display function. The entire braiding process achieves functions such as automatic stop for wire breakage, automatic lubrication, and automatic stop for oil shortage.
The product quality is high. Due to the high precision of mechanical transmission, the main body of the braiding spindle is made of high-strength nylon to ensure that the tension of the braiding thread is constant and meets the process regulations.
The braiding noise is low, and the double-layer sound-absorbing protective cover is used for sound insulation, which can greatly reduce noise, and can be produced safely, and the appearance is beautiful and generous.
The technical level is high, reaching the current international advanced level in Italy, Japan, the United Kingdom and other countries.
