▍Product Introduction

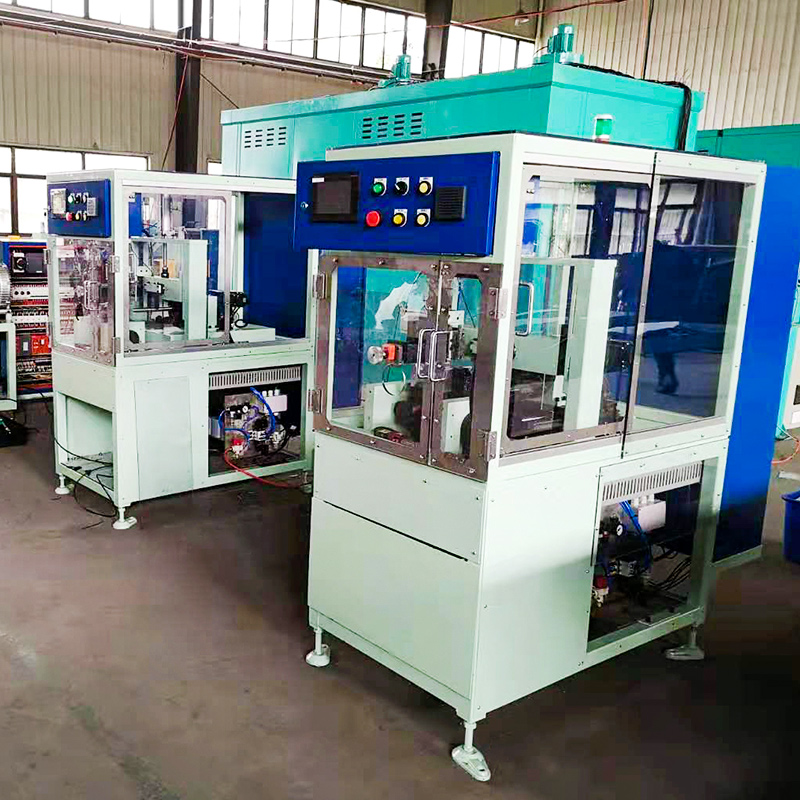

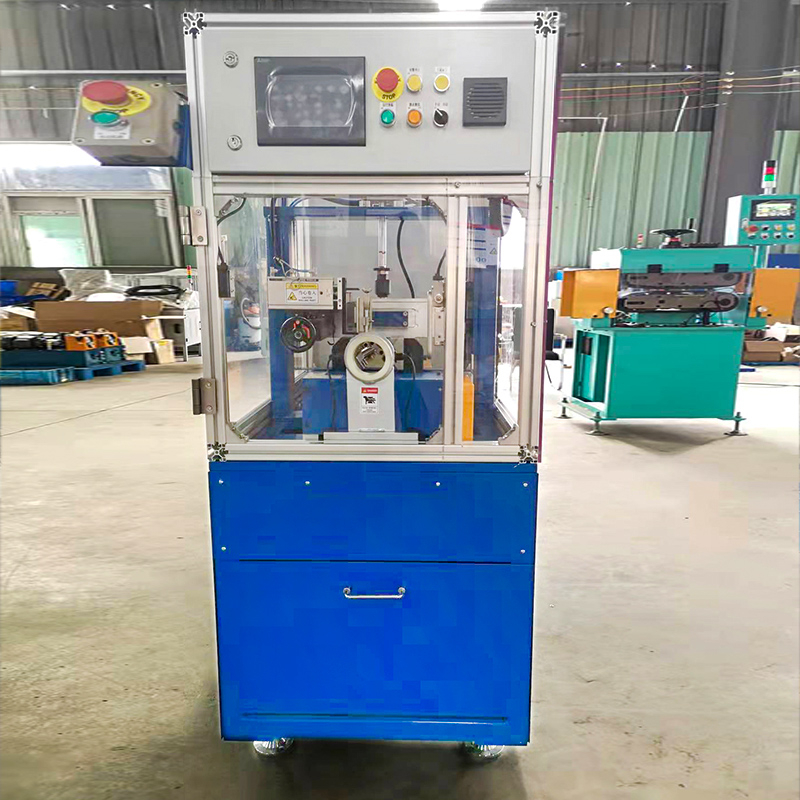

Automatic Hydraulic Hose Skiving Machine developed by our company can take over the peeling of hydraulic hoses outside, inside or simultaneously inside and outside in one operation.
Hose Stripping Machine peels the rubber layer of the hydraulic hose with the turning method.
Our Hose Stripping Machine can skive steel wire braided hoses, winding hydraulic rubber hose, especially suitable for high-pressure steel wire braided winding rubber hose
▍Product Advantages
Excellent hose skiving effect
Skived hose: The quality of rubber hose chip stripping operation is guaranteed
(1) There is no obvious residue of external adhesive, and the steel wire is clearly visible;
(2) There is no obvious discoloration or burning on the outer surface of the steel wire;
(3) Steel wire head: There is no wire disorder at least 5mm from the head position
Fast skiving Speed：8s/pcs
High degree of automation: The rubber hose is automatic with PLC
▍Product Features
High speed: 8s/pcs
High degree of automation: The rubber hose is automatically clamped and skived, without the need for manual support, saving manpower
The scope of rubber stripping operation is wide
Can skive the inner and outer diameter of multiple specifications of rubber hoses
Mature and stable equipment, easy maintenance, and low operating costs
The larger the pipe diameter, the better the skiving effect
Skived hose: The quality of rubber hose chip stripping operation is guaranteed
(1) There is no obvious residue of external adhesive, and the steel wire is clearly visible;
(2) There is no obvious discoloration or burning on the outer surface of the steel wire;
(3) Steel wire head: There is no wire disorder at least 5mm from the head position
Safe operation: Safety protection detection devices are installed during opening and closing doors, operation, shutdown, and other working conditions
Control of chip cutting position: about 1.5mm
▍Product Details
▍Optional Configuration
▍Technical Parameters
Equipment operating object | The end of the assembly hydraulic hose (especially suitable for high-pressure steel wire braided rubber hose) for cutting and stripping operations |
Inner diameter | 13-51 mm |
Outer diameter | 20-76mm |
Cycle time | 8 seconds/ end |
Length | 25mm-100mm ±1.0mm |
Marking position | 25mm-150mm ±0.5mm |
The length of the operable hose | ≥500mm |
Equipment composition | Frame device, cutting device, clamping device, positioning and marking device, safety device |
Equipment size | 1550 X 750 X 1600mm |
Position of the steel wire head | 5mm and above from the head without disorder |
Chip incision position control | around 1.5mm |
