▍Product Introduction

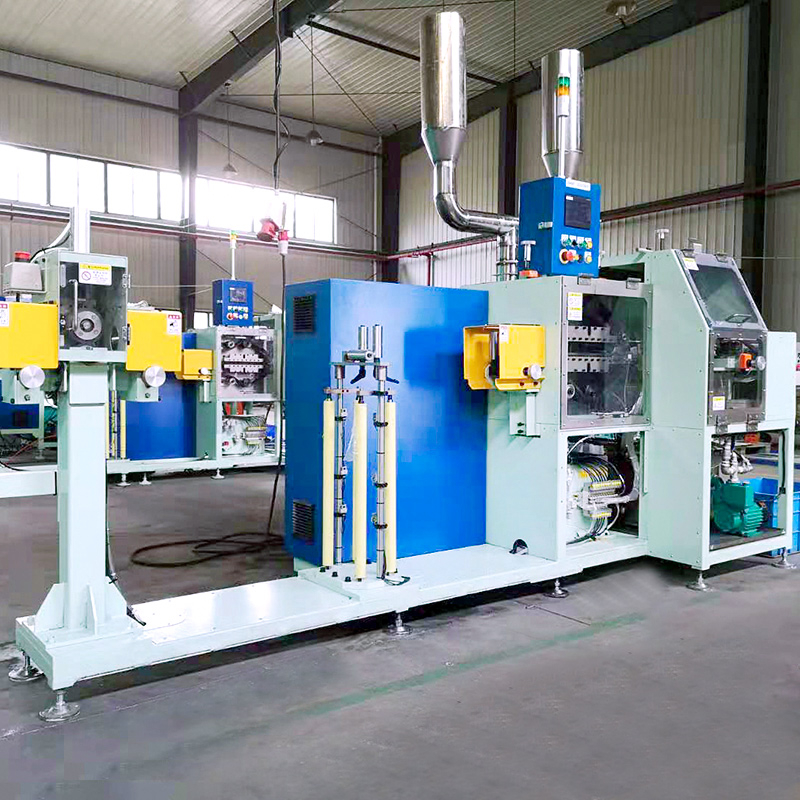

We are the Leading Manufacturer of Automatic hydraulic hose cutting machine. Our automatic cutting machine is used for the volume production of hose assemblies, which provides a fast and efficient, smooth, dust-free, long-lasting service.
H & S's Hose Cut-Off Machine enables quick and easy cutting of multi-braided wire and spiral reinforced hoses.
Hose cutting range is from 12mm up to 39mm, enable any user to make factory-quality hose assemblies
Customers feedback is that our products is the most valid alternative to the few companies that have been monopolizing the market for many years.
▍Product Advantages
Operation method
Automatic hose feeding and cutting
Accurate cutting
Accurate cutting length, multiple cuts can meet an error of ± 1.0mm;
Verticality of cutting section: ± 3 °
Surface roughness of cutting hose end face: Ra80-Ra100
Neat cross-section, smooth incision of the hose
Debris-free & smoke-free cuts
Equipped with automatic spraying and smoking circulation
▍Product Features
High degree of automation, safe and efficient operation
High speed: 12 seconds per piece (when cutting length is 1.5m)
Cutting hose diameter range up to 2 1/2”
Accurate cutting length, multiple cuts can meet an error of ± 1.0mm;
Neat cross-section, smooth incision of the hose
The cutting blade is durable and can be used up to 150000 times
Equipped with automatic spraying and smoking circulation device to eliminate fire hazards, eliminate odors, save energy and reduce emission
The machine is compact and precise, saving space
The cutting length and cutting number are read through the barcode and uploaded to the MES system
Safe operation: Safety protection detection devices are installed during opening and closing doors, operation, shutdown, and other working conditions
▍Product Details
▍Optional Configuration
▍Technical Parameters
Function | DEBRIS-FREE & SMOKE-FREE cut high pressure hydraulic hoses |
Applicable hose types | medium and high pressure steel wire braided hoses, winding
hydraulic rubber hose |
Cutting length range | 300-30000mm |
Cutting outer diameter range | ø12-ø39mm |
Cutting speed | 12 seconds/pcs |
Cutting length | Multiple cuts can meet an tolerance of ± 1.0mm |
Verticality of cutting section | ± 3 ° |
Surface roughness of cutting hose end face | Ra80-Ra100 |
Water tank capacity | 60L |
Cutting blade specifications | outer diameter ø255 * inner diameter ø46 * thickness 3mm |
Cutting device motor power | 7.5KW-11KW |
Power supply | 380V 50Hz three-phase five-wire |
Machine dimensions | 4000 x 1600 x 2100 (mm) |
Optional function | marking device for crimping |
Safety protection detection | Opening and closing doors, operating, shutting down and other
working conditions |
Equipment composition | Import transition traction mechanism, buffer induction, hose head
marking system (optional), length detection, cutting device, output
device, water flow dust removal system (optional), control system, etc.; |
