▍Product Introduction

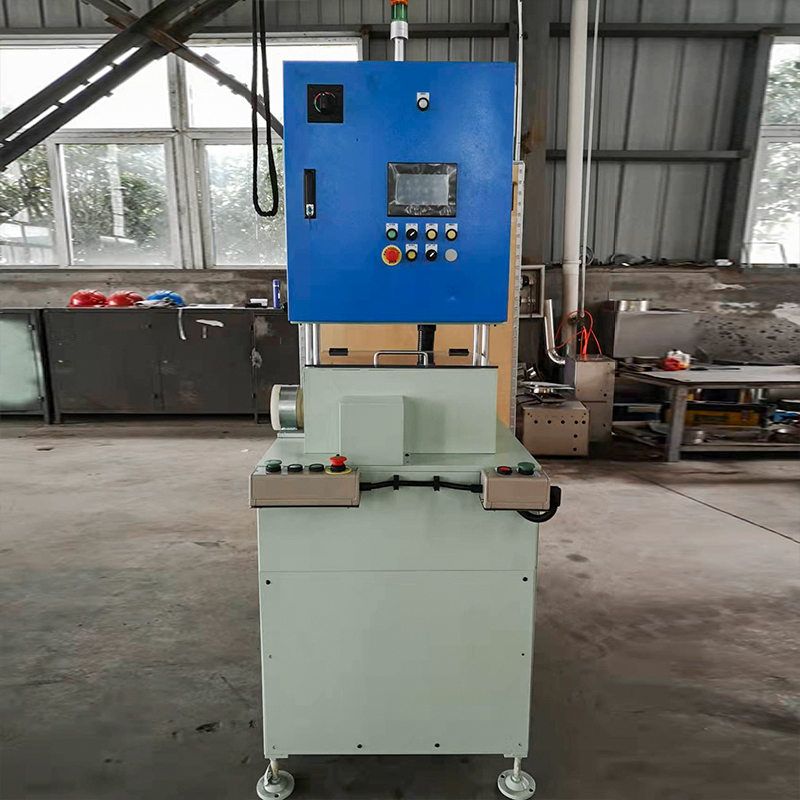

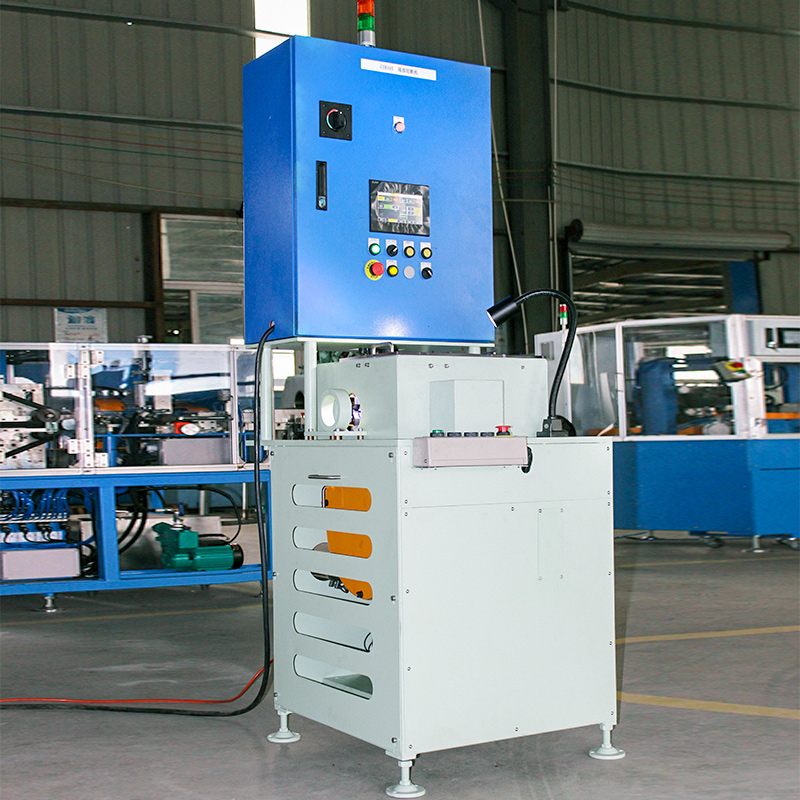

The end rotary cutting machine developed by our company is specifically designed for the end rotary cutting of medium and high pressure hydraulic hoses in hard mandrel technology.
Traditional cutting equipment only has a simple manual one-way cutting function, which poses safety, fire, pollution and other hazards, and is inconvenient to operate. Cutting operations rely solely on the subjective consciousness of operators, and the effectiveness and quality of the operation cannot be guaranteed.
Compared with traditional hose cutting equipment, the end rotary cutting machine developed by our company completely avoids the above problems. It has the characteristics of safe operation, reducing noise, pollution, fire hazards, neat cutting of end faces, easy operation, and high degree of automation.
▍Product Features
Safe and reliable
Double protection for the blade, install a thickened protective cover for the blade and a protective cover for the equipment body;
Clamping and rotating device safety protection;
No manual assistance is required during cutting operations;
Superior performance
Large cutting range - outer diameter 18mm-60mm;
High feed precision—accurately controlled by the servo system, the feed speed can be adjusted between 0.20mm—2mm/rpm;
The cut section of the pipe end is neatly cut without blowing the end;
High degree of automation, easy for personnel to work;
High degree of automation: Automatic blade cutting replaces manual cutting, ensuring safety and stability
The end of the hose is cut off, and there is no damage to the outside of the hose and the surface of the mandrel rod
Equipment clamping replaces manual clamping, accurate and firm
The rubber hose rotates automatically, the blade rises and cuts accurately
The circular blade minimizes the emission of sparks and dust during operation, reduces fire hazards, and reduces the odor of the work site to the greatest extent possible
Safe and easy operation
Large cutting range

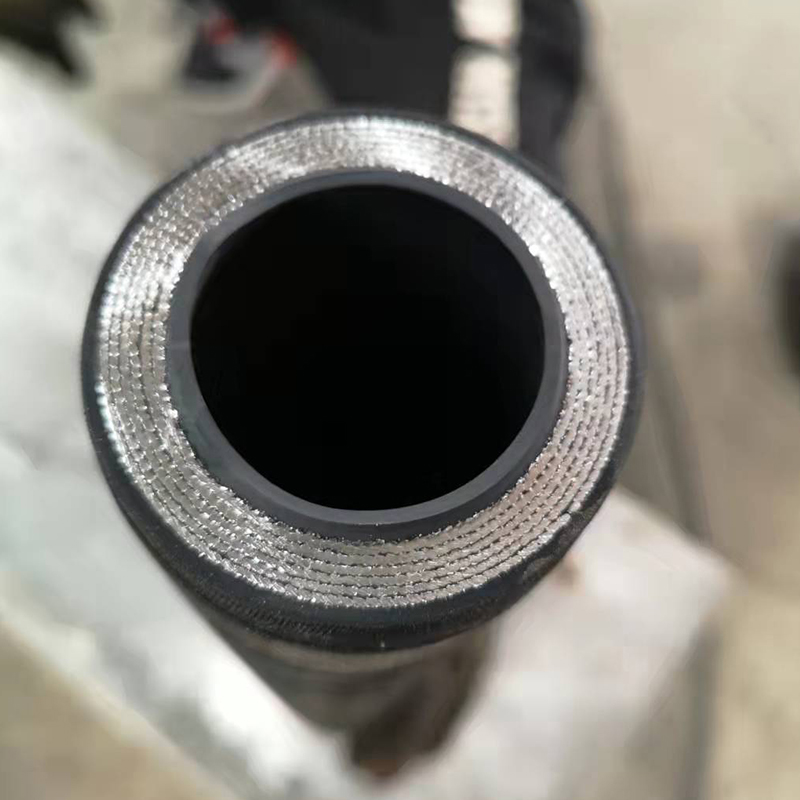

The cut ends are neatly cut, without any head explosion
Reduce noise
▍Product Details
▍Optional Configuration
▍Technical Parameters
Blade rotation speed | 1440 rpm/min |
Lifting and cutting off servo
motor power | 0.75KW |
Clamping force control | cylinder diameter 50mm |
Power | 380V±10%, 3-phase 4-wire system, 50Hz |
Air pressure | 0.5-0.8Mpa |
Equipment features | Safe and reliable:
a. The blade is double protected, the blade thickened protective cover and the equipment body protective cover are installed;
b. Safe protection for clamping and rotating device;
c. No manual assistance is needed during cutting operation.
Superior performance:
a. Large cutting range: outer diameter of 18mm-60mm;
b. High feed accuracy: the servo system has precise control and can adjust the feed speed between 0.20mm and 2mm/rpm;
c. Neat cutting surface without head explosion;
d. High degree of automation, easy operation by personnel. |
