▍Product Introduction

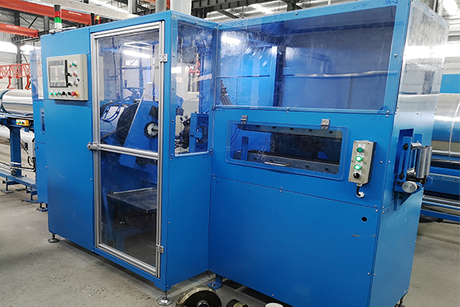

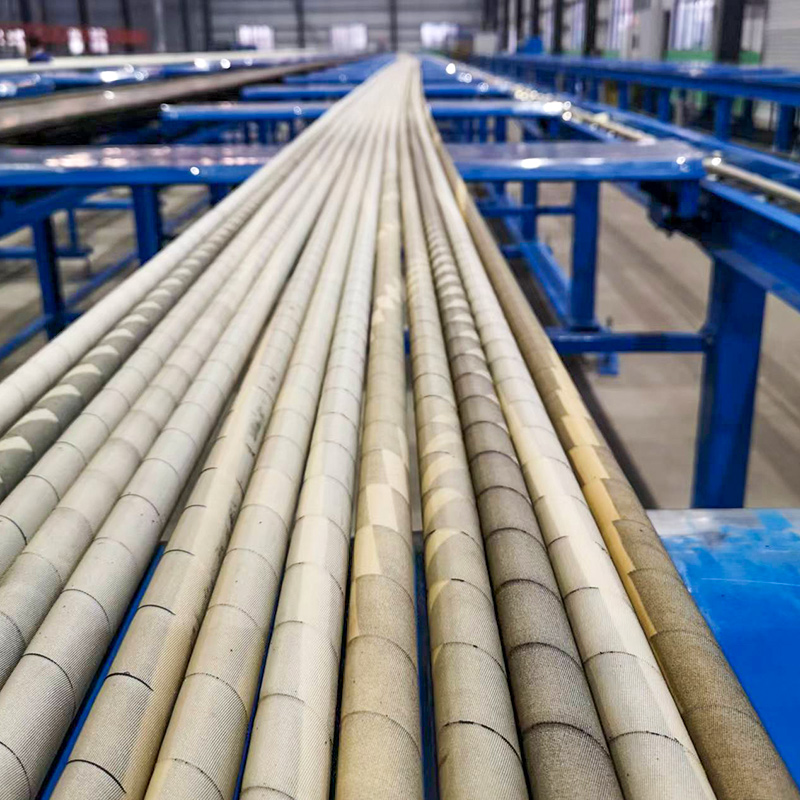

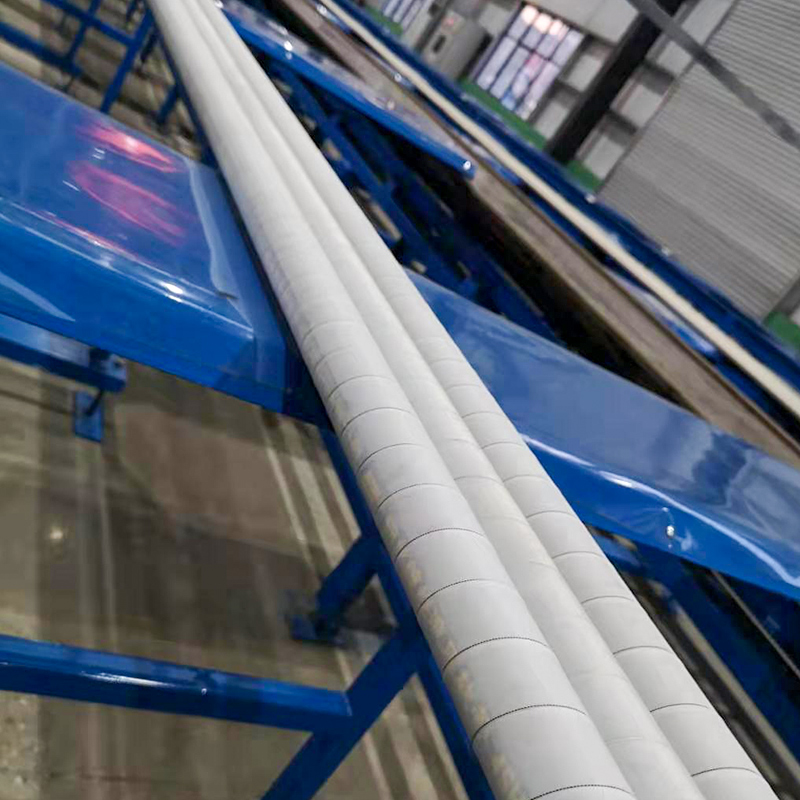

The production line of the wrapping and unwrapping machine developed by our company is based on the production line that wraps the fabric belt around a rubber hose undergoes vulcanization, and then unwraps the fabric belt. It is modified through absorption and digestion, and integrates front and rear winding, traction, and host linkage operation; A production line with advanced functions such as stable tension, uniform pitch, high automation program, and high productivity.
Through PLC program and speed controller control, it can achieve wrapping and unwrapping of fabric belt with a specification of 30-120mm, and a rubber hose diameter ranging from φ 8~ φ 75mm, with any pitch selection within the range of 15-60mm, increasing the range of use and meeting more production needs of rubber and plastic hoses. This production line is promoted in rubber and plastic hose production equipment and has a wide potential market.
▍Product Advantages
High cost-effectiveness
The configuration is high, with the main motor being Siemens motor and Siemens frequency converter. Tension control being Siemens servo motor and Siemens controller, and traction motor being Siemens servo motor and Siemens controller; The high-end configuration ensures stable tension of the fabric belt, good consistency of travel when starting and stopping. beautiful appearance of the unrolled hose, and stable product performance.
Almost no noise

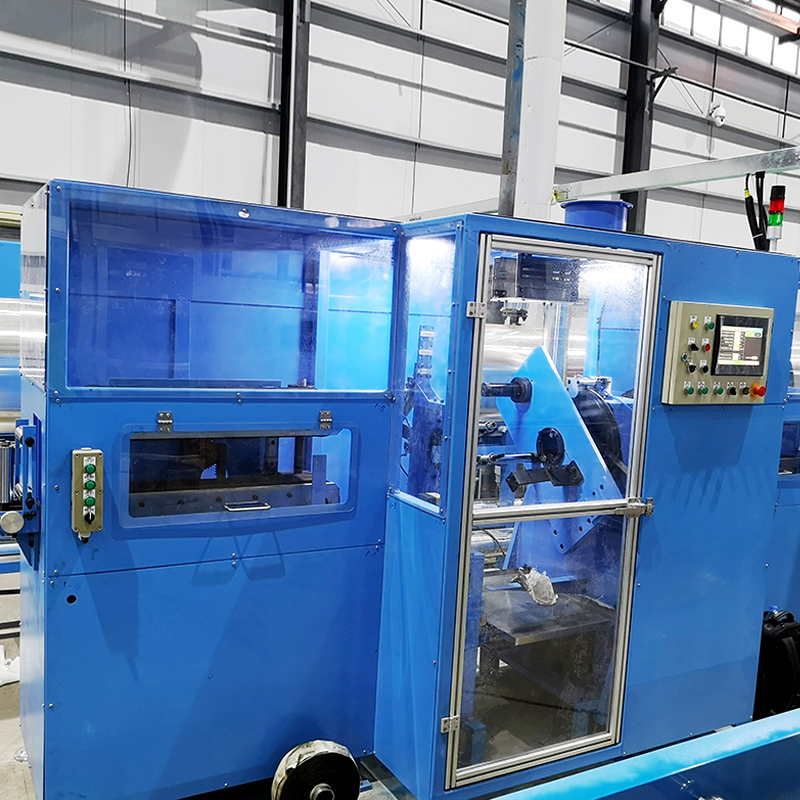

There is almost no noise in the whole machine. The whole machine works in the sound absorption protective cover, reducing Noise pollution, and improving the safety of the machine. The appearance is simple and beautiful, meeting the needs of modern processing industry.
Safe and reliable operation
The entire machine is safe and reliable, equipped with door opening and shutdown, cloth belt breakage, and cloth belt usage shutdown.
▍Product Features
Fast speed
High precision, stable operation and safe control

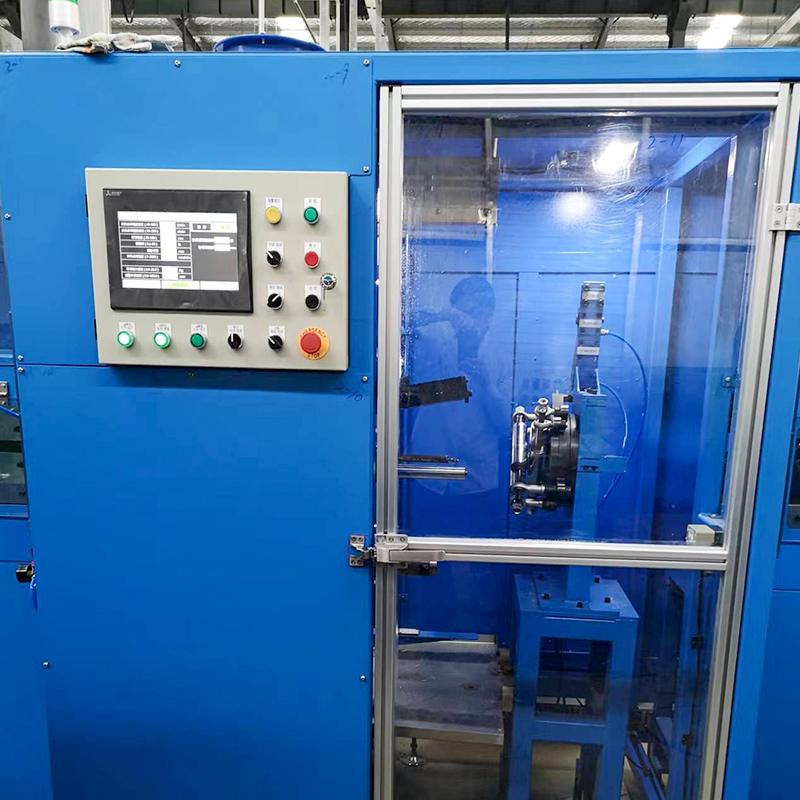

High degree of automation, PLC control, LCD display screen
Waterproof、sound insulation、safety protection

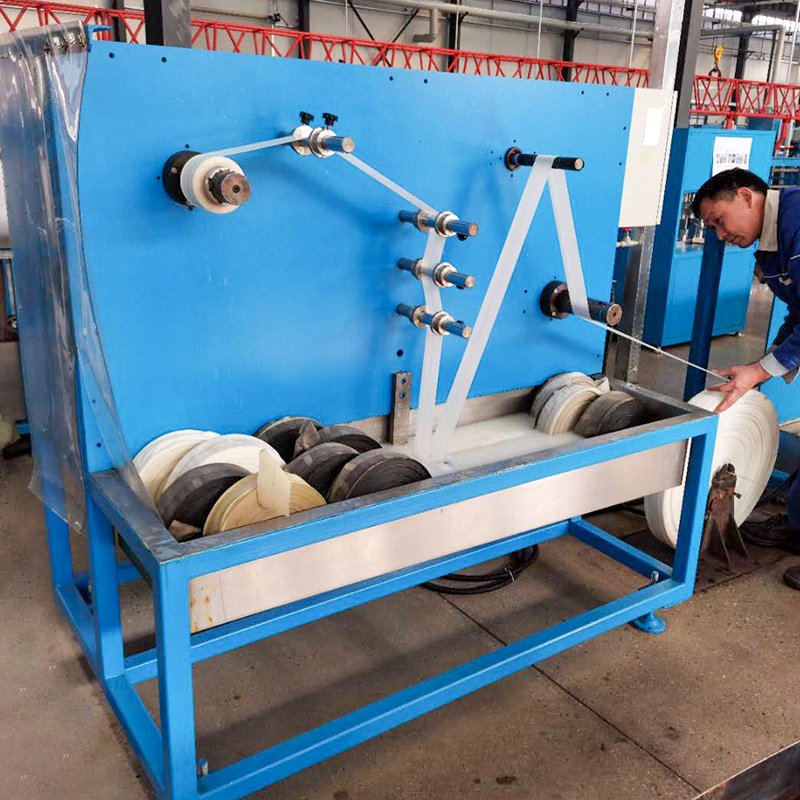

Stable tension of cloth wrapping and tension adjustable
Cloth breakage and shutdown detection alarm
Alarm detected at the end of the hose
Double hauler: wrapping and unwrapping function
One machine for dual use: wrapping and unwrapping
▍Product Details
▍Optional Configuration
▍Technical Parameters
Winding cloth pitch | T=0～100mm |
Production speed | up to 30m per minute |
Control method | PLC control, LCD display, pneumatic brake system |
Main spindle drive motor: encoder
frequency conversion motor, power | 7.5KW |
Cloth tension | 1～15Kgf |
Center height | 1100mm (±50mm) |
Overall dimensions | 1650×3500×2000mm |
Front and rear traction machine | a. Traction force: 400kg
b. Drive motor: servo motor
c. Traction and pressing methods: upper and lower opening, crawler or synchronous belt traction |
Security control | a. Safety device: automatic stop after opening the door (working door, tractor safety door)
b. Automatic alarm:
1. Cloth break shutdown alarm;
2. Detection alarm at the end of the hose |
