▍Product Introduction
The production line of the wrapping and unwrapping machine developed by our company is modified based on the absorption and digestion of the production line introduced from an Italian company that wraps cloth belt on rubber hoses and unwraps the cloth belt after vulcanization. It integrates front and rear winding, traction, and main machine linkage operation; A production line with advanced functions such as stable tension, uniform pitch, high automation program, and high productivity.
Through the input and output of a text display, it can realize the wrapping and unwrapping of cloth belt with a specification of 30-100mm, and the diameter of the rubber hose is from φ 8~ φ 50mm, any pitch can be selected within the range of 15-50mm, which increases the range of use and meets more rubber and plastic hose wrapping production needs.
▍Product Advantages
High cost-effectiveness
The configuration is high, with the main motor being Siemens motor and Siemens frequency converter. Tension control being Siemens servo motor and Siemens controller, and traction motor being Siemens servo motor and Siemens controller; The high-end configuration ensures stable tension of the fabric belt, good consistency of travel when starting and stopping. beautiful appearance of the unrolled hose, and stable product performance.
Almost no noise
There is almost no noise in the whole machine. The whole machine works in the sound absorption protective cover, reducing Noise pollution, and improving the safety of the machine. The appearance is simple and beautiful, meeting the needs of modern processing industry.
Safe and reliable operation
The entire machine is safe and reliable, equipped with door opening and shutdown, cloth belt breakage, and cloth belt usage shutdown.
▍Product Features
Fast speed
High precision, stable operation and safe control
High degree of automation, PLC control, LCD display screen
Waterproof、sound insulation、safety protection
Stable tension of cloth wrapping and tension adjustable
Cloth breakage and shutdown detection alarm
Alarm detected at the end of the hose
Double hauler: wrapping and unwrapping function
One machine for dual use: wrapping and unwrapping

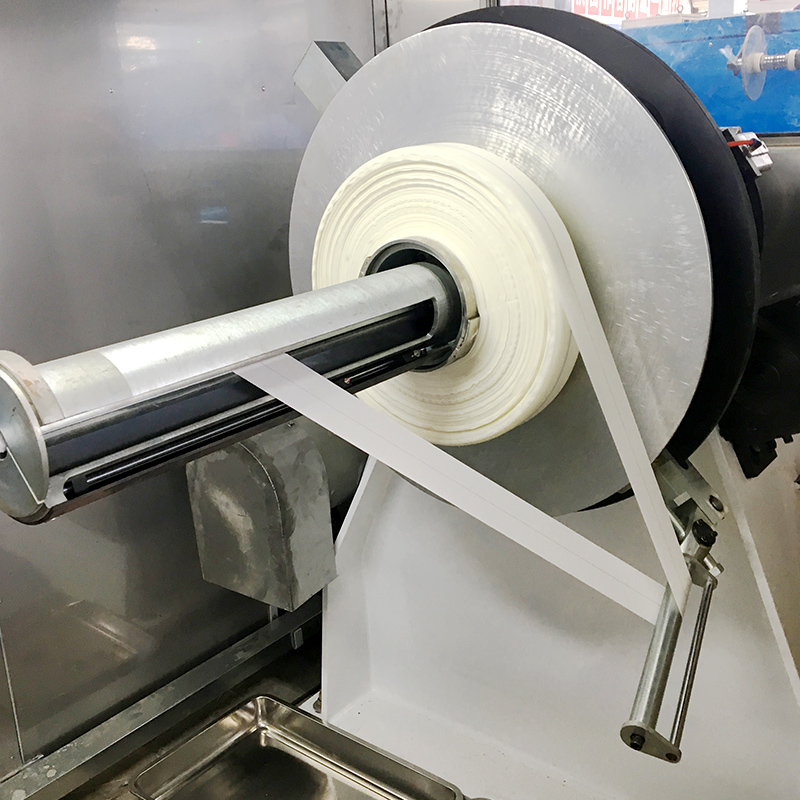

▍Product Details
▍Optional Configuration
▍Technical Parameters
Equipment | Wrapping and unwrapping hose machine (Flex Mandrel) |
Function | For the hydraulic winding/braiding hose of Flexible Mandrel process, the wrapping before vulcanization and the unwrapping operation after vulcanization |

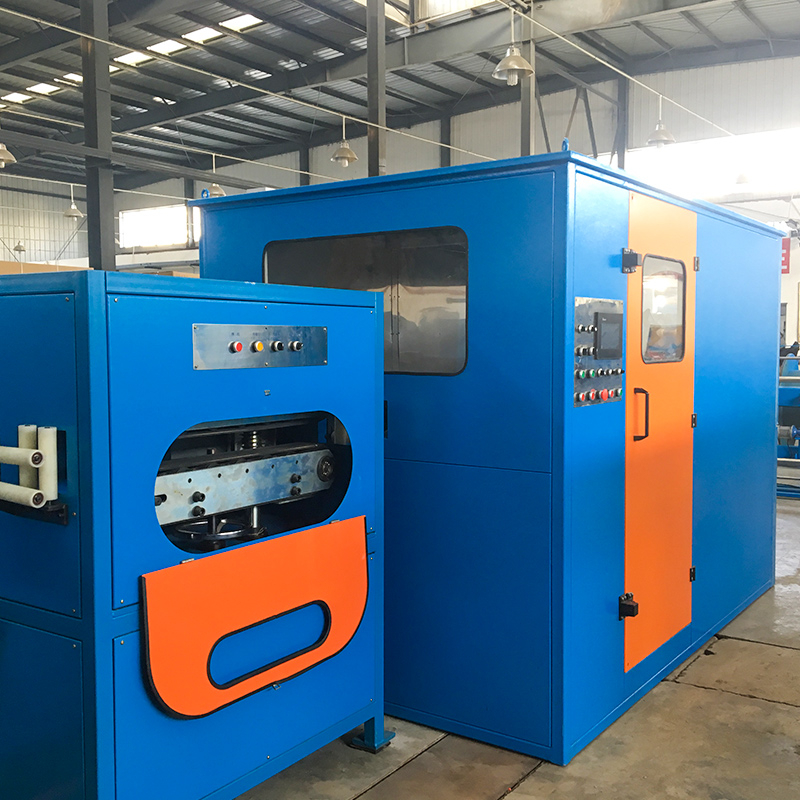

Equipment Components: | Main machine + protective cover + double hauler |
Main machine | Center shaft, fixed pipe fixed length, CNC display |

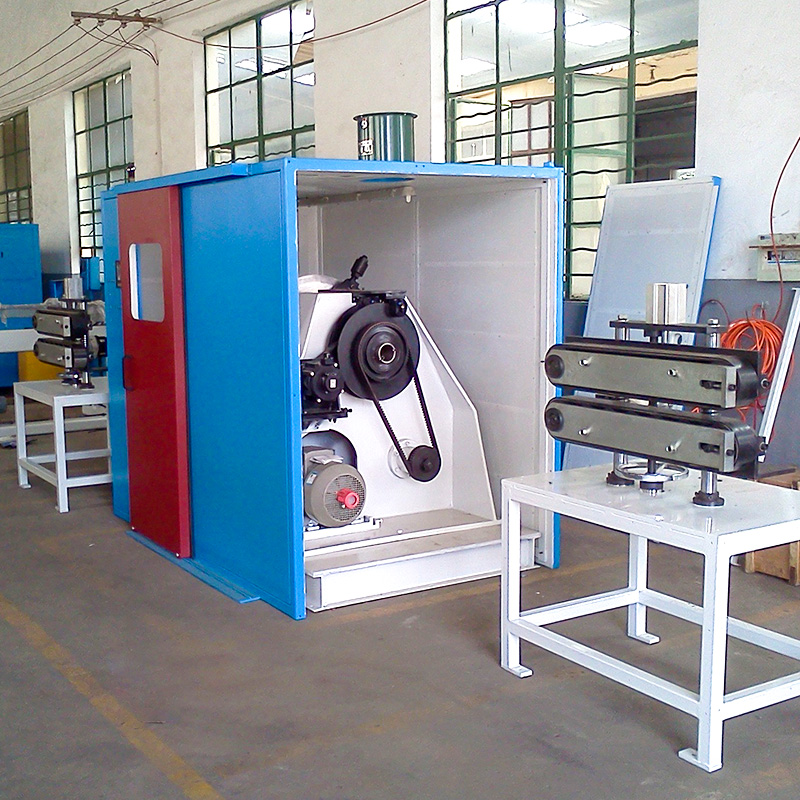

Protective cover | waterproof, soundproof, and safety protection |
Double hauler + double adjustment | Wrapping and unwrapping function, one machine dual use |
Control | Fast speed, high precision, stable operation and safety control |
Hose outer diameter | 8～75mm |
Belt disk specification | diameter×aperture×belt width Φ900×φ192×（30~120）mm |
Max diameter of belt | φ800mm |
Max speed of winding disc | 10~ 1000R /min |
Wrapping belt thickness | 0.5-1mm |
Wraping cloth pitch | T=15~60mm |
Center height | 1100mm (±50mm) |
Compression method | Cylinder |
Wrapping drive motor | AC motor (Siemens) |
Tension drive motor | Servo motor (Siemens motor and Siemens controller) 1-10KG |
Total power | 21kw |
Compressed air pressure | ≥ 0.5mpa |
Air consumption | About 100 liters/hour |
Overall dimensions | 1800 x 2700 x 2000mm |
Weight | 2500kg |

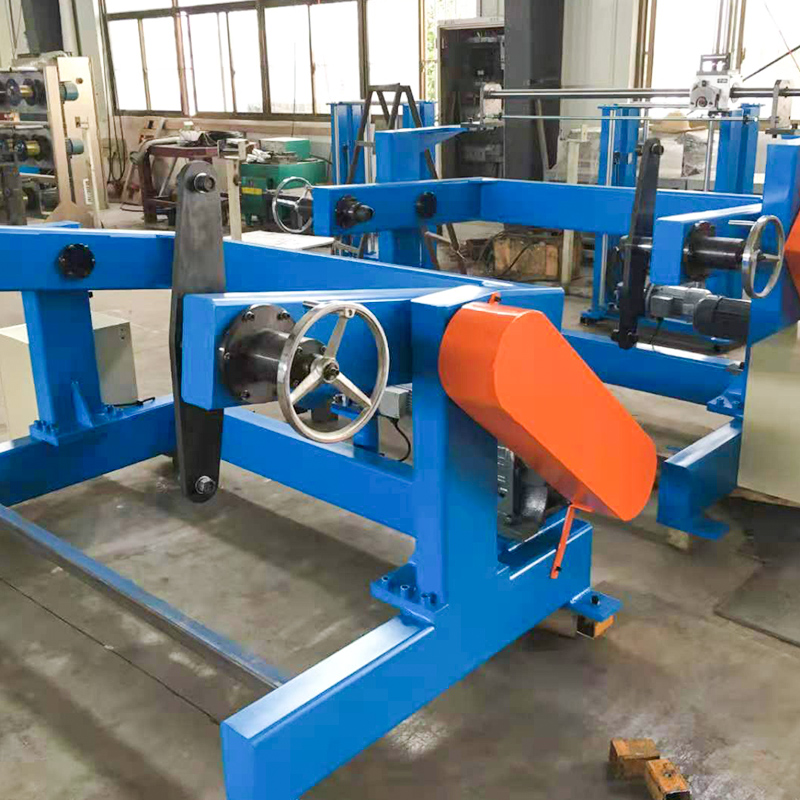

Front and rear traction machine | a. Traction force: 200kg
b. Drive motor: servo motor servo motor (Siemens motor and Siemens controller)
c. Individually controlled upper and lower traction drives
|
Security control | a. Safety device: automatic stop after opening the door (working door, tractor safety door)
b. Automatic alarm:
1. Cloth break shutdown alarm;
2. Detection alarm at the end of the hose |
